Vertex Cover



Definition:     A vertex-cover of an undirected graph G=(V, E) is a subset of V`subset of V such that if edge (u, v) is an edge of G then either u in V or v in V` (or both).

Problem:        Find a vertex-cover of maximum size in a given undirected graph.

This optimal vertex-cover is the optimization version of an NP-complete problem but it is not too hard to find a vertex-cover that is near optimal.

APPROX-VERTEX_COVER (G: Graph)

  1. c ← { }
  2. E` ← E[G]
  3. while E` is not empty do
  4.     Let (u, v) be an arbitrary edge of E`
  5.     c ← c U {u, v}
  6.     Remove from E` every edge incident on either u or v
  7. return c

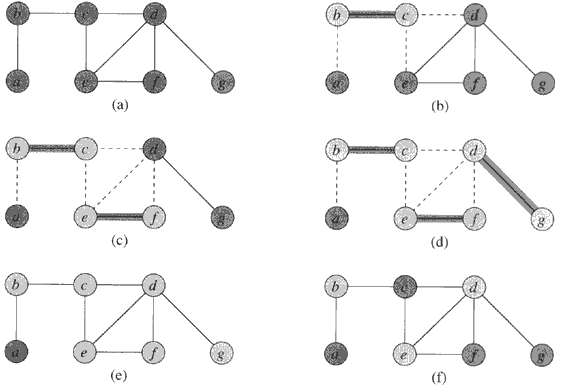

Example

Analysis

It is easy to see that the running time of this algorithm is O(V+E), using adjacency list to represent E`.

Theorem: APPROX-VERTEX-COVER is a polynomial-time 2-approximate algorithm i.e., the algorithm has a ration bound of 2.

Goal: Since this a minimization problem, we are interested in smallest possible c/c*. Specifically we want to show c/c* ≤ 2 = p(n). In other words, we want to show that APPROX-VERTEX-COVER algorithm returns a vertex-cover that is atmost twice the size of an optimal cover.

Proof:    Let the set c and c* be the sets output by APPROX-VERTEX-COVER and OPTIMAL-VERTEX-COVER respectively. Also, let A be the set of edges selected by line 4.

Because, we have added both vertices, we get c = 2|A| but OPTIMAL-VERTEX-COVER would have add one of two.

=>     c/c* ≤ p(n) = 2.

Formally, since no two edge in A are covered by the same vertex from c* (since, once an edge is picked in line 4, all other edges that are incident on its endpoints are deleted from E` in line 6) and we the lower bound:

            |c*| ≥ A        ---------------------------------- 1

On the size of an OPTIMAL-VERTEX-COVER.

In line 4, we picked both en points yielding an upper bound on the size of Vertex-Cover.

            |c| ≤ 2|A|

Since, upper bound is an exact in this case, we have

            |c| = 2|A|       ---------------------------------- 2
Take |c|/2 = |A| and put it in equation 1
         |c*| ≥ |c|/2
    |c*|/|c|  ≥ 1/2
     |c*|/|c| ≤ 2 = p(n)

proving the theorem. □
