Adjusting Overshoots and Undershoots

                                                                                                                                            Back to ADV GIS

Overshoots: The overshoots can be adjusted in one of the following ways;

A.     In this method you will select the overshoot by clicking on it and then delete it.

Arcedit: coordinate mouse

Arcedit: drawe arc tic ids

Arcedit: editf arc

Arcedit: sel many

Select all the overshoots, press 9 on the keyboard.

Arcedit: delete

All the overshoots will be deleted.

B.     In this method the overshoots are adjusted by using a “box”.

Arcedit: drawe arc tic ids

Arcedit: editf arc

Arcedit: sel box

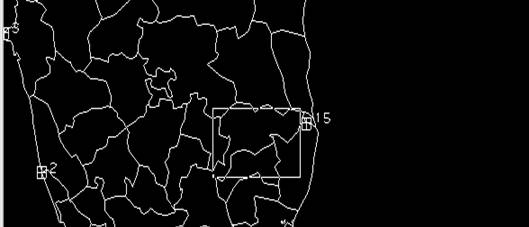

Draw a box around the overshoot.

Arcedit: drawselect

Arcedit: delete

The selected overshoot will be deleted.

Undershoots: The undershoots can be adjusted by;

1. If the undershoot is large, delete the arc and re-digitize it.
2. If the undershoot is small, use the following procedure;

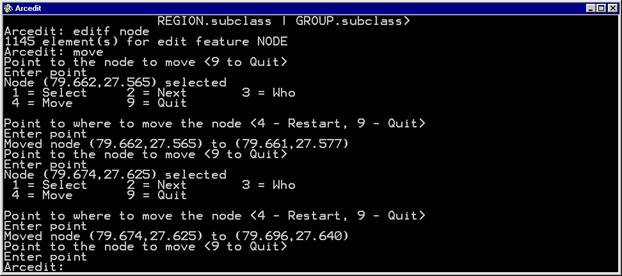

Arcedit: drawe node on

Arcedit: editf node

Arcedit: draw

Arcedit: move

Move the node to its proper position and press 9 to quit.

Don’t forget to clean and build the polygons, and the save the project.
